25' 4"


179 GAL

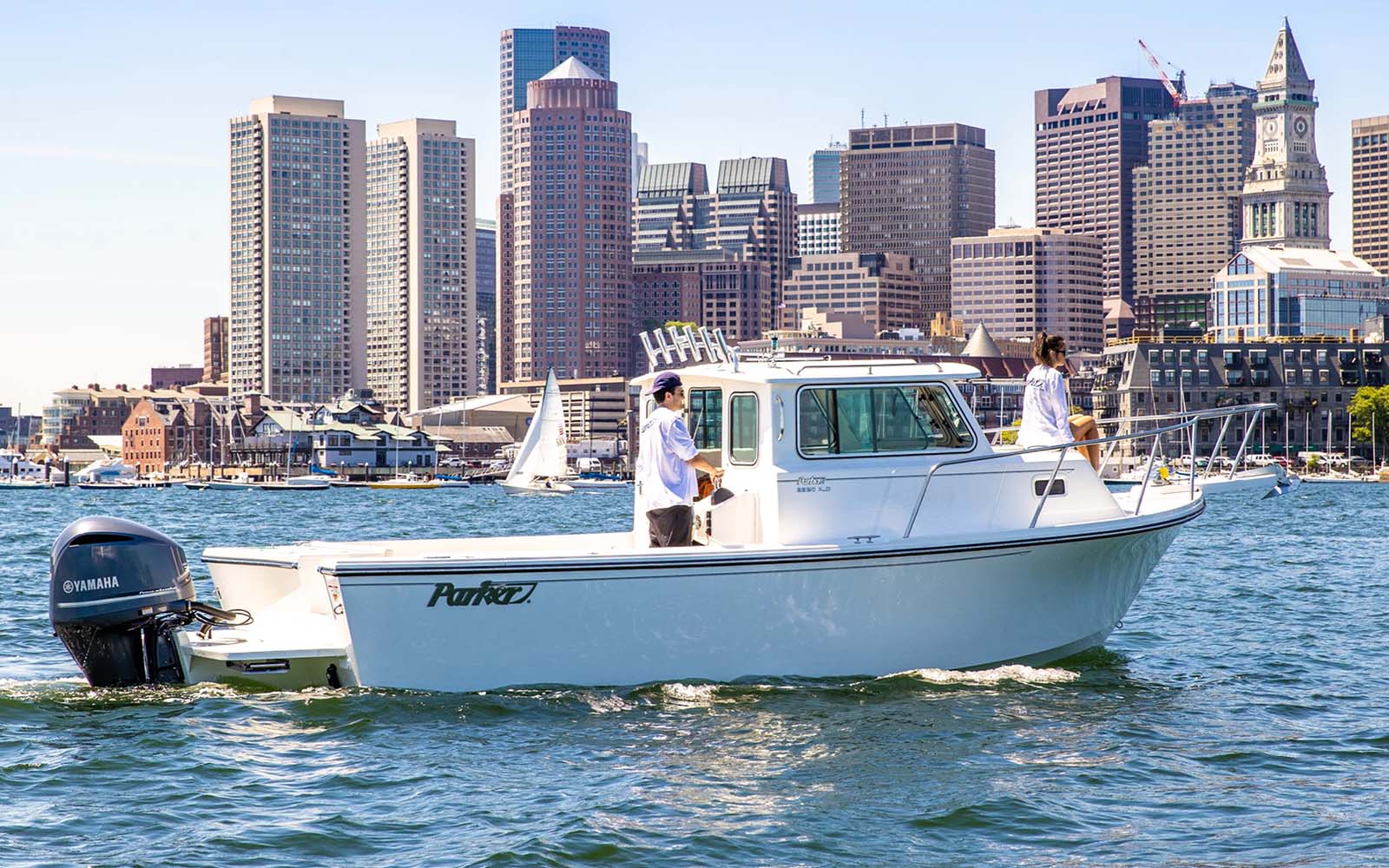

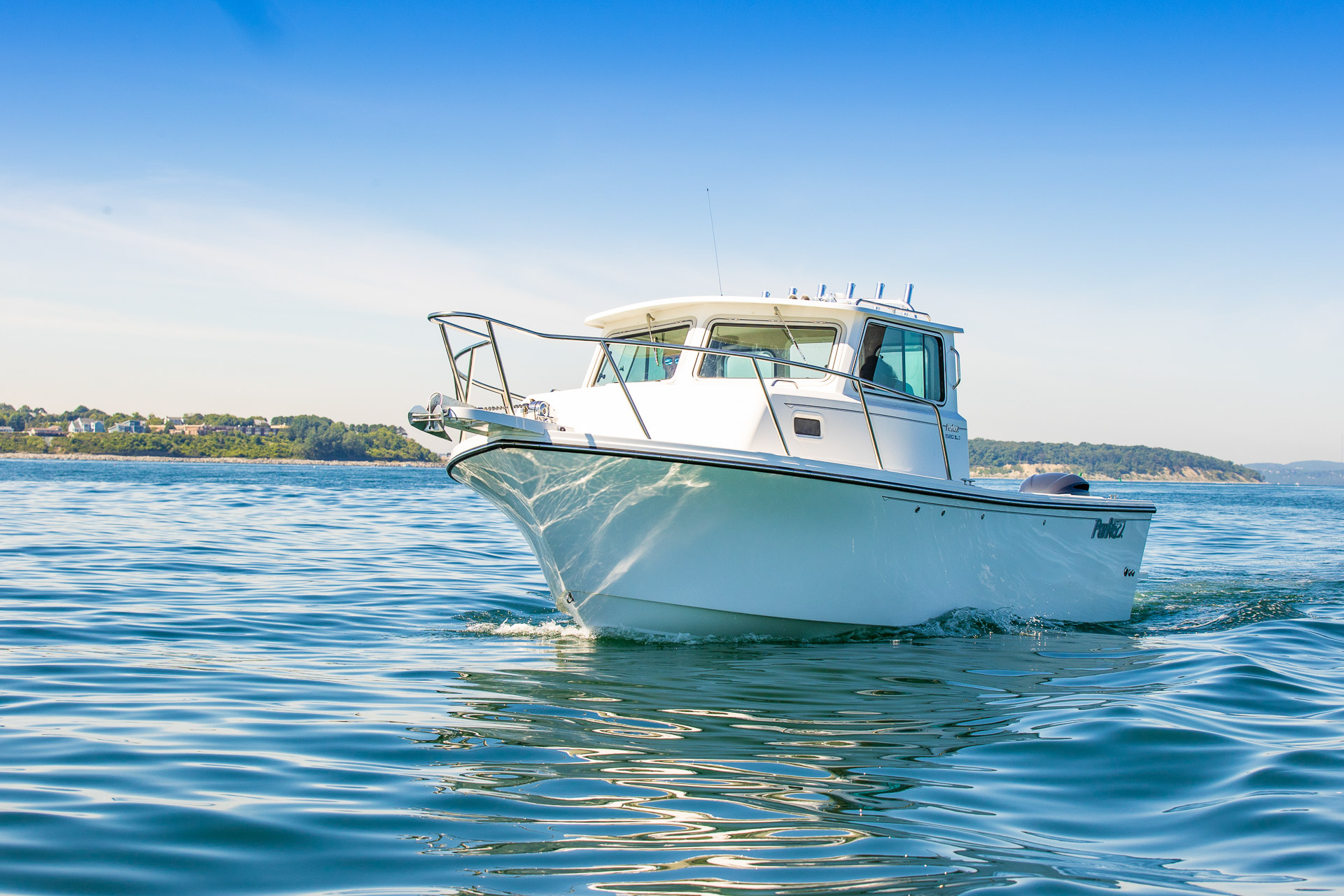

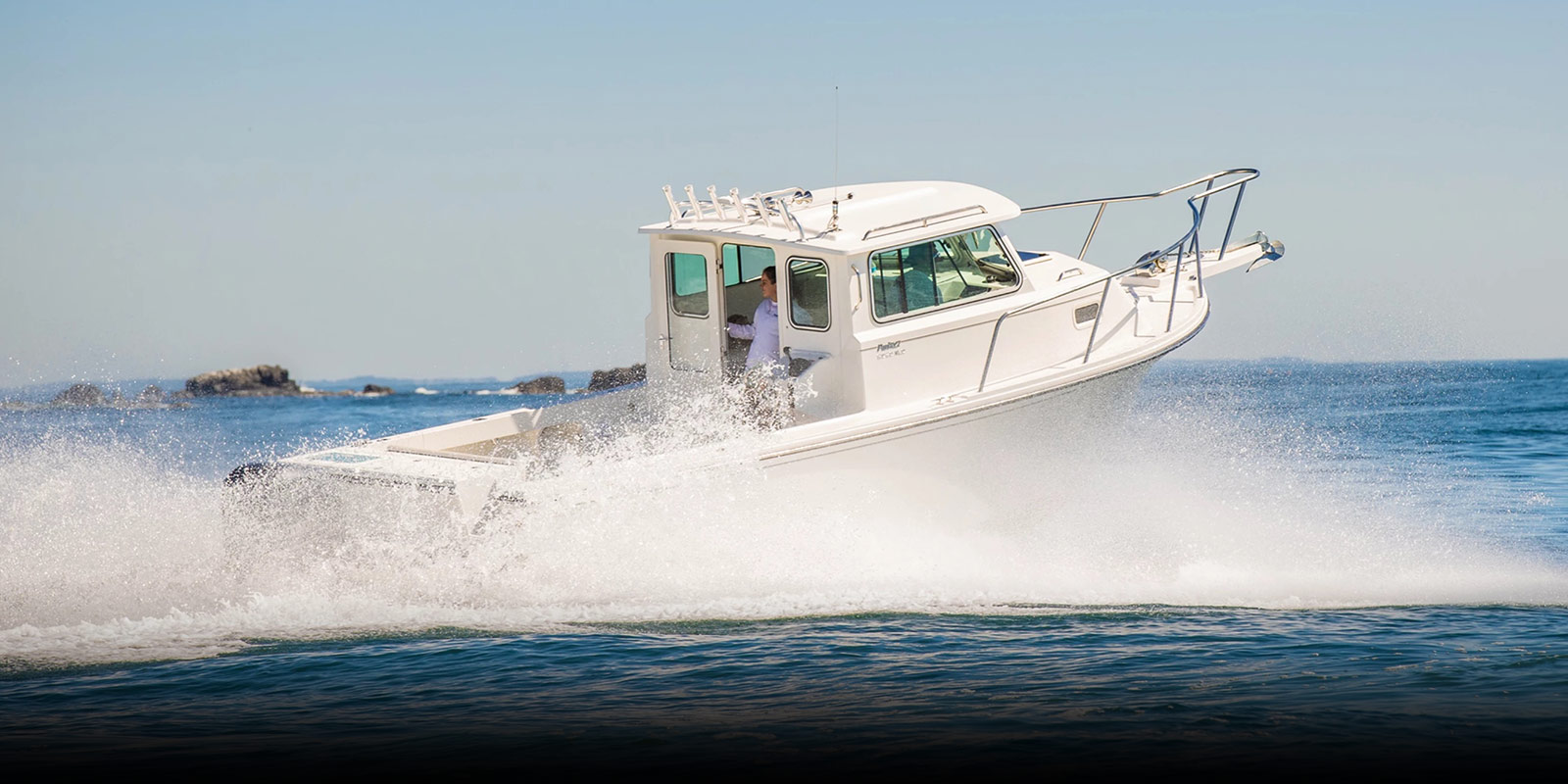

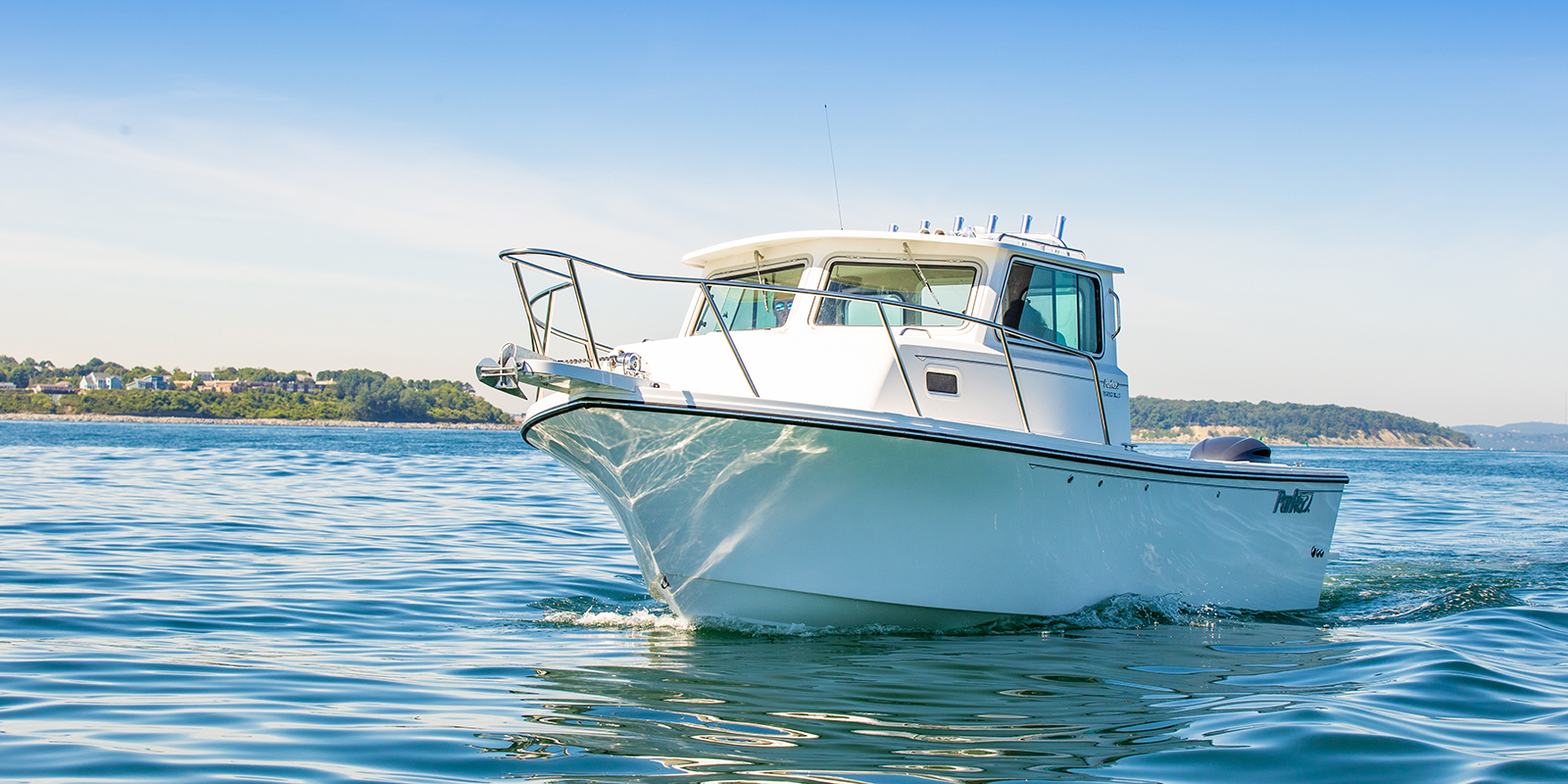

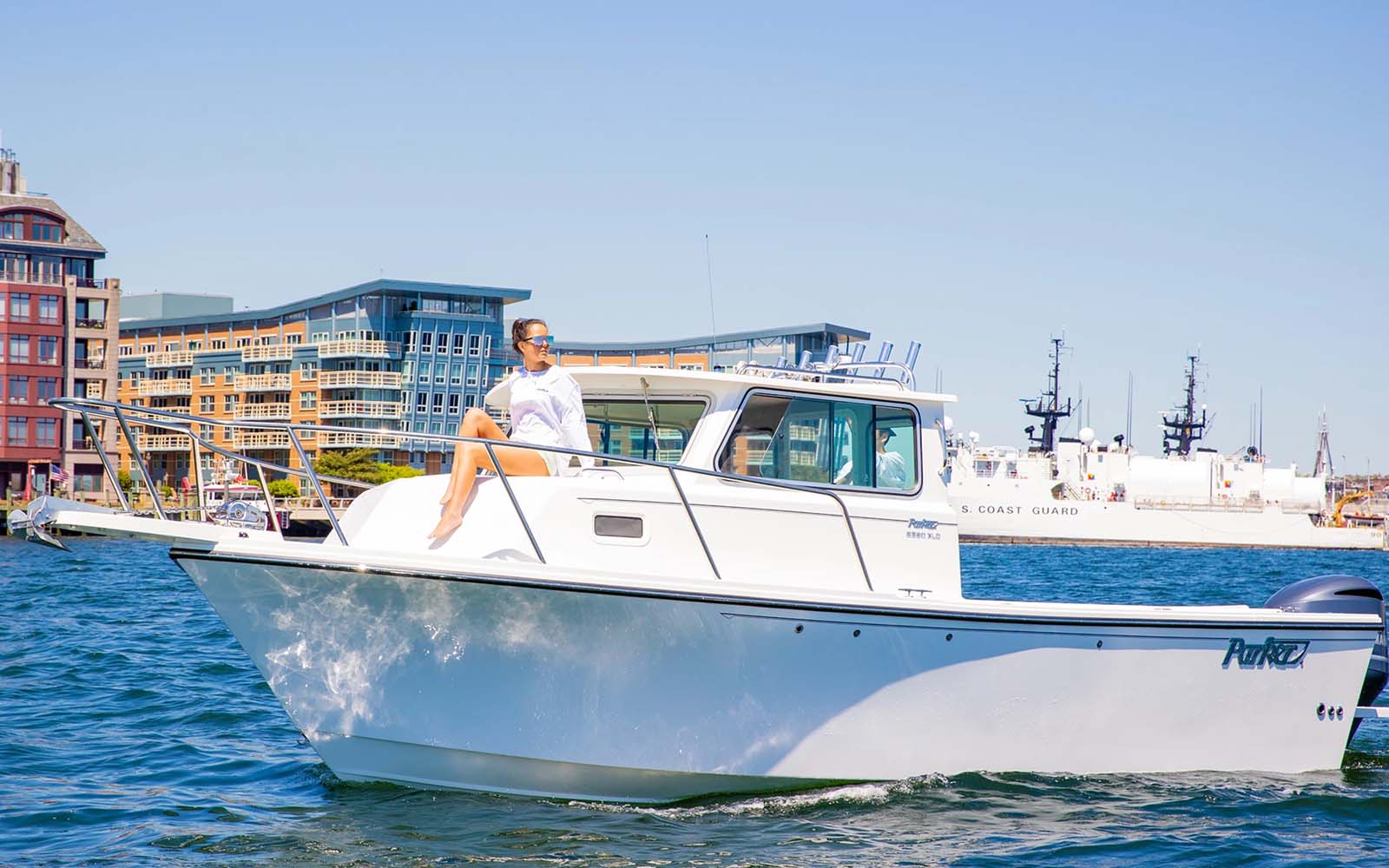

2520 XLD Sport Cabin

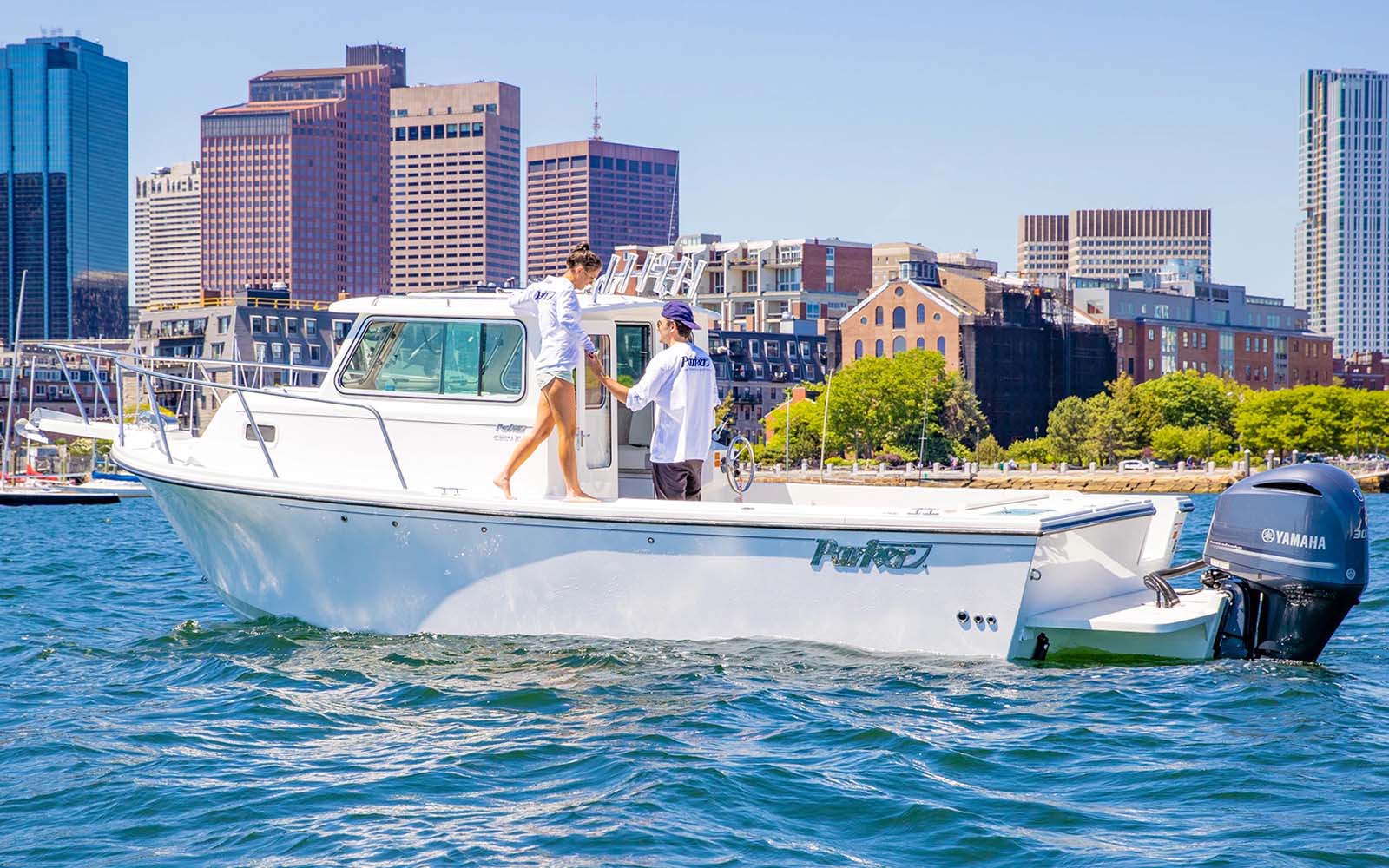

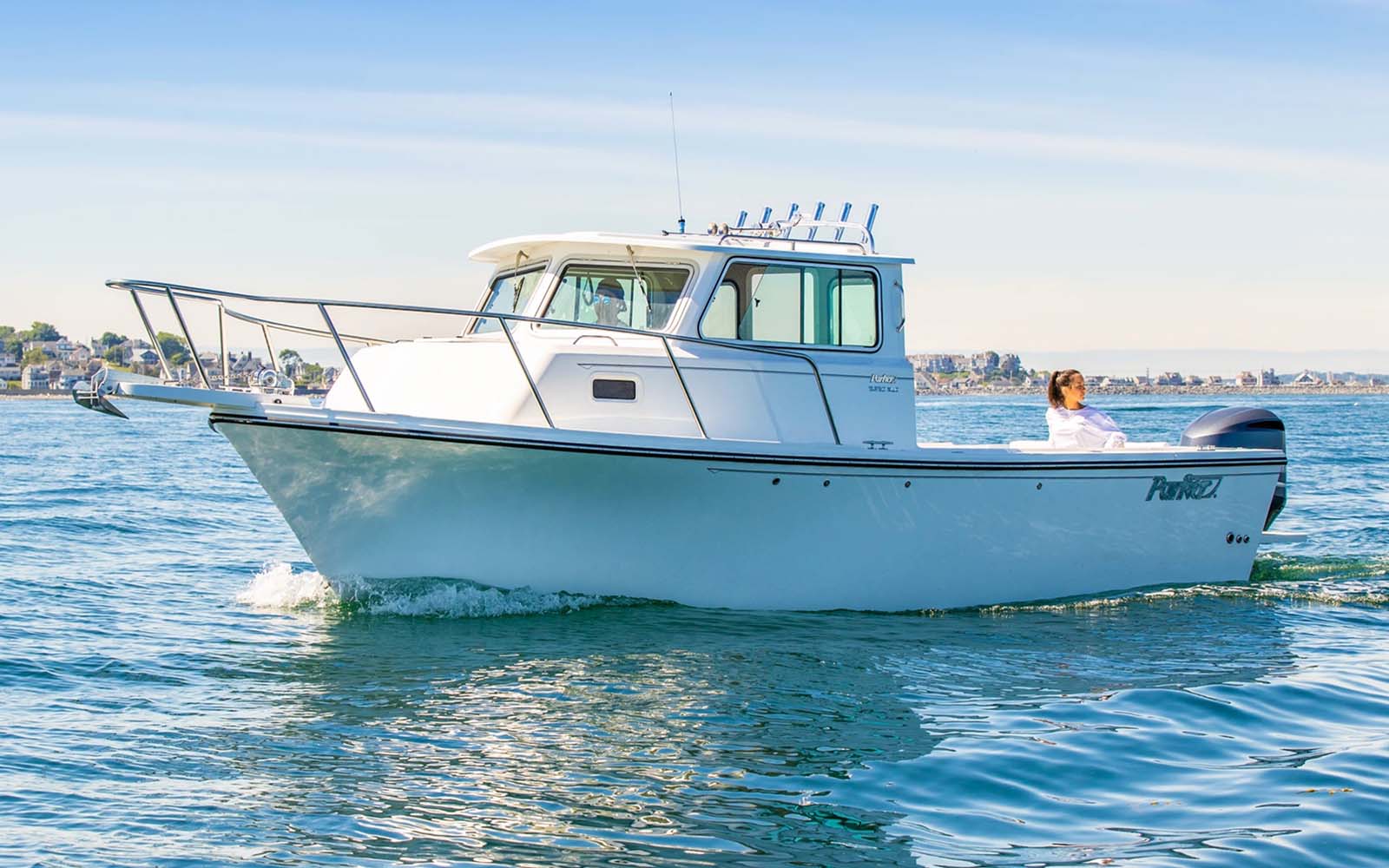

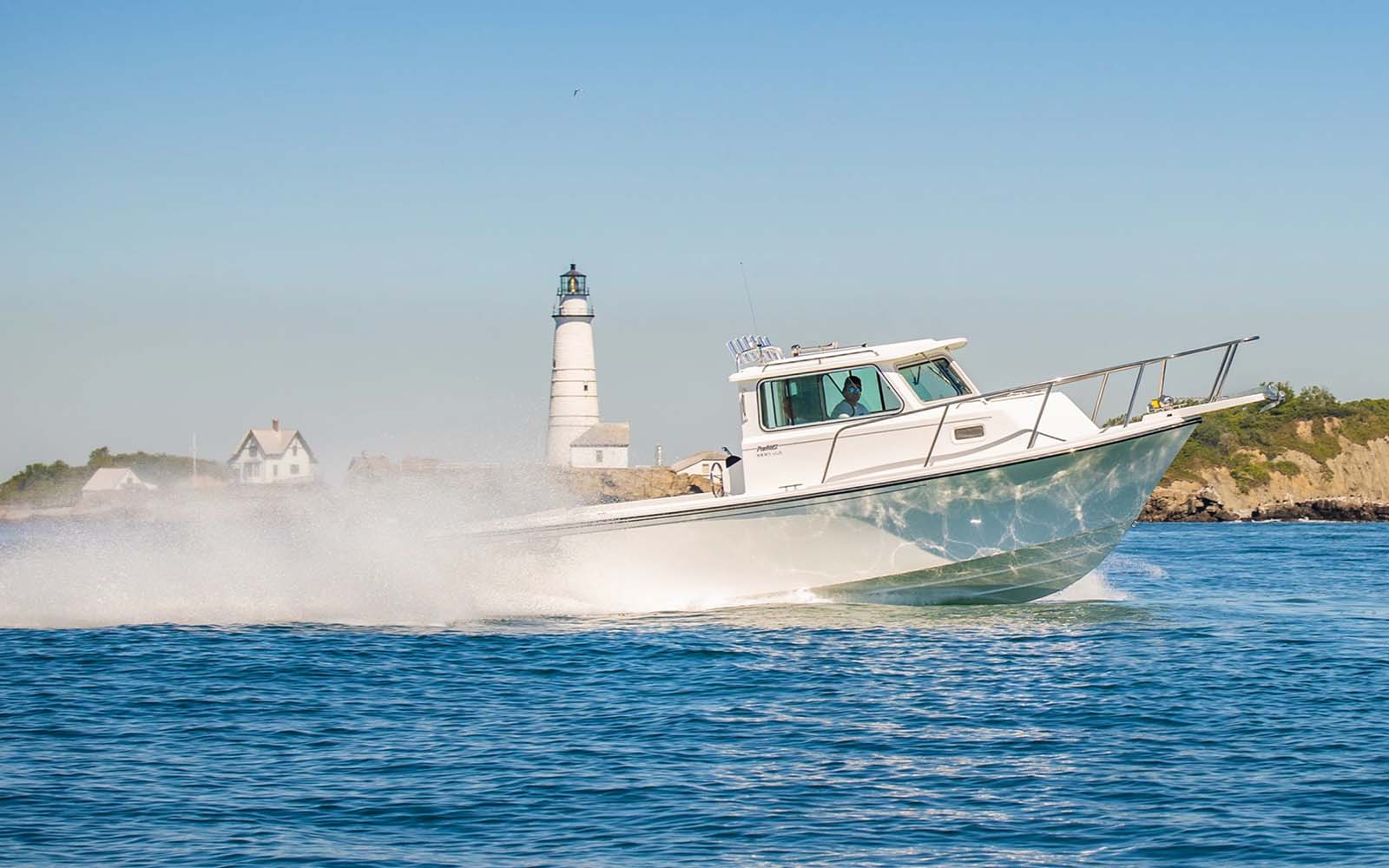

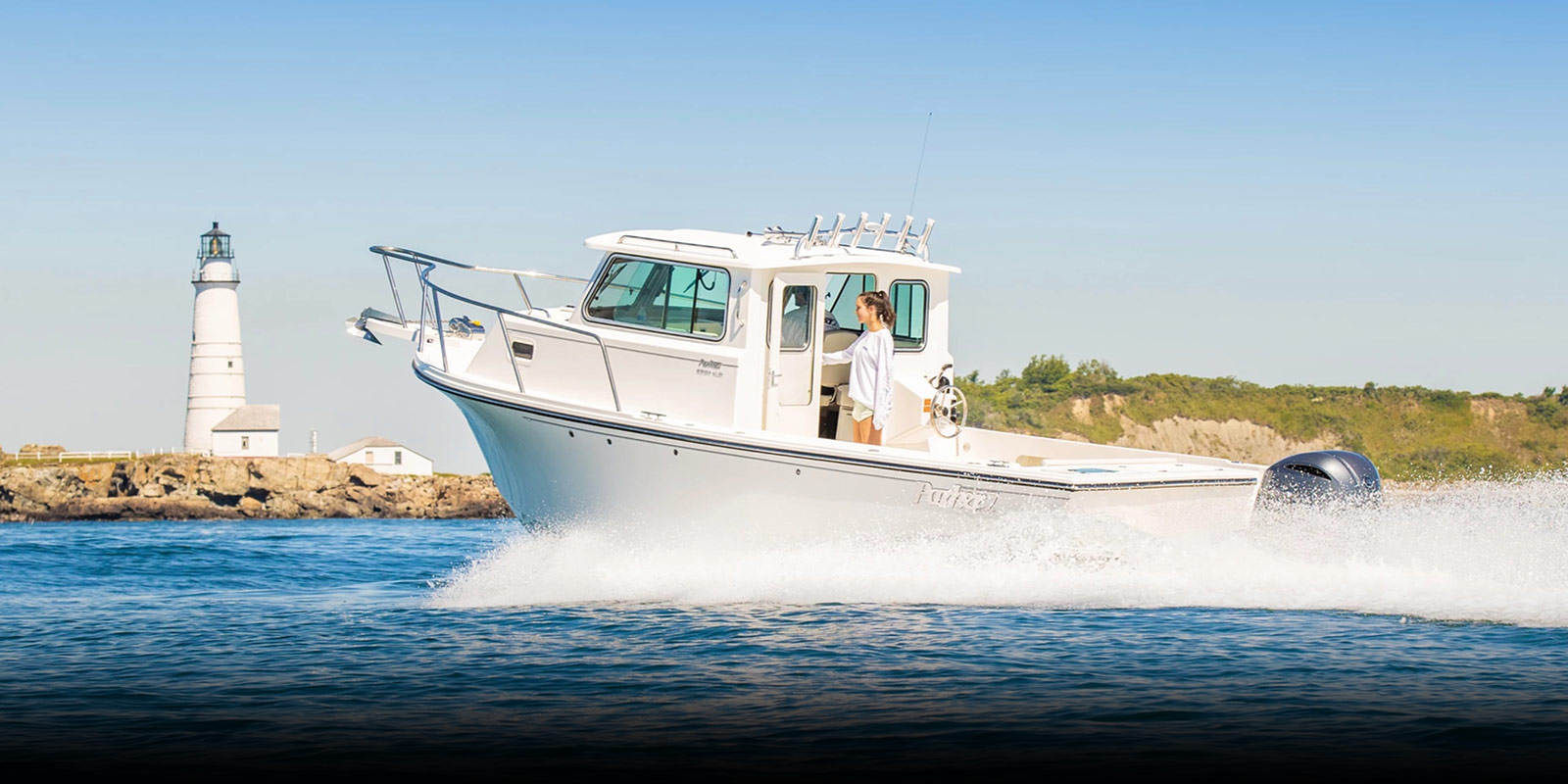

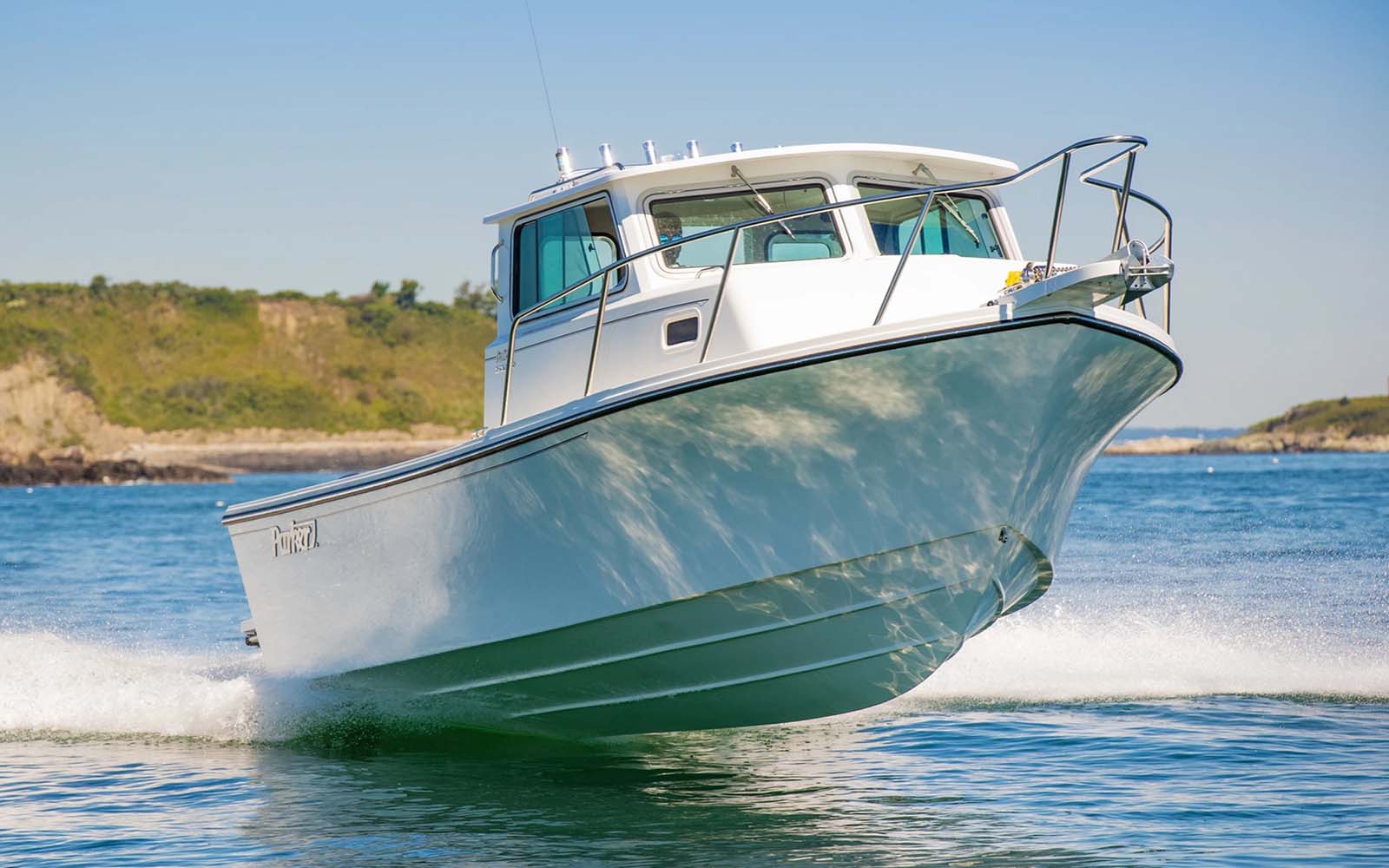

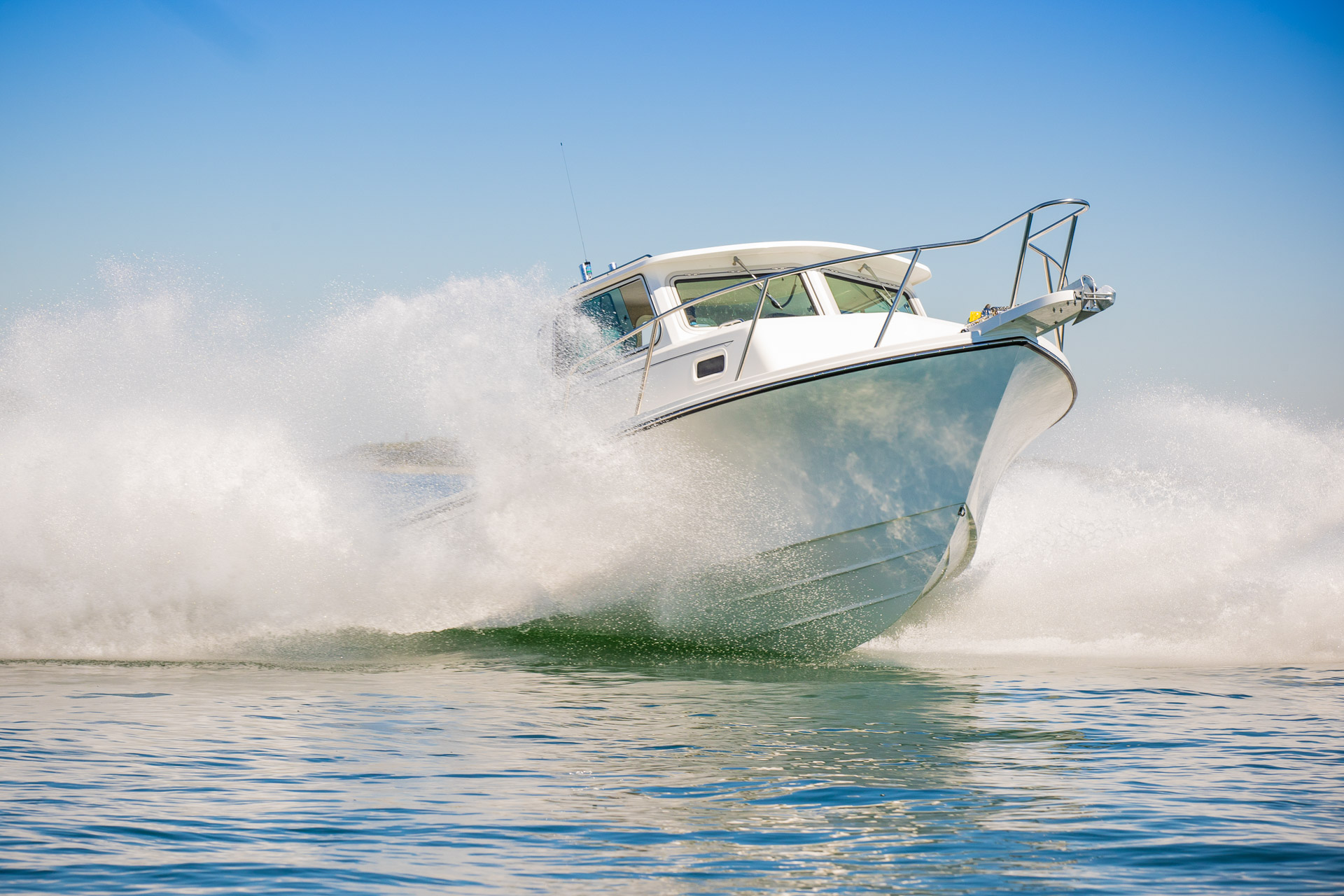

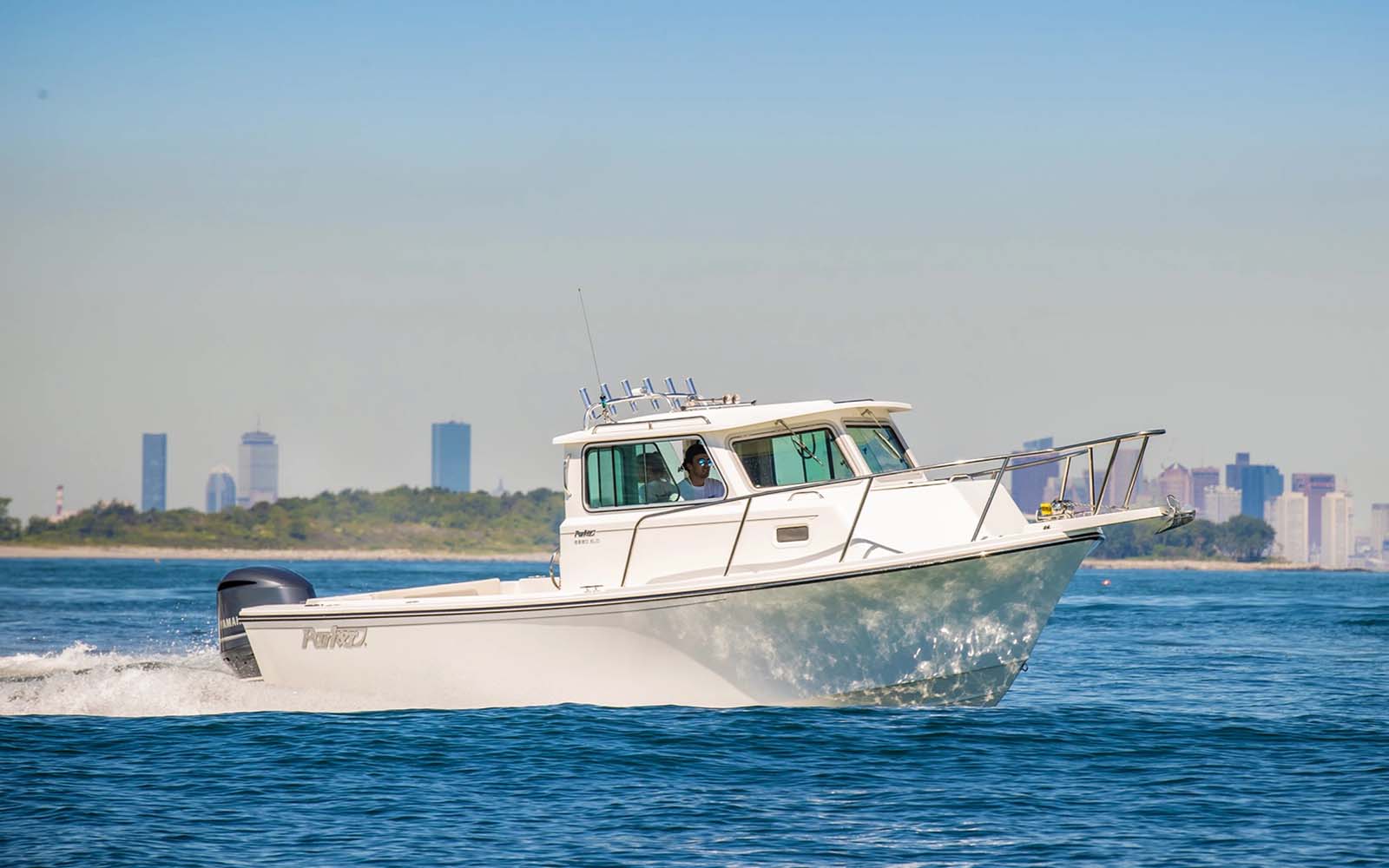

There is no better feeling than being on the water fishing or cruising with family and friends. The Parker Sport Cabin provides shelter from the wind, rain, sun, and the changing seasons. Step inside the cabin, open the windows and cool off or close them and warm up. Better yet, open the forward hatch and take a nap on the forward birth. Built on the proven Deep-V Parker hull, that provides a soft, dry ride and its large versatile cockpit the Parker Sport Cabin sets the standard for all who try and follow. The cockpit can be optioned as a hardcore offshore fishing boat or a family cruising boat with the optional cockpit lounge seat and sunshade.

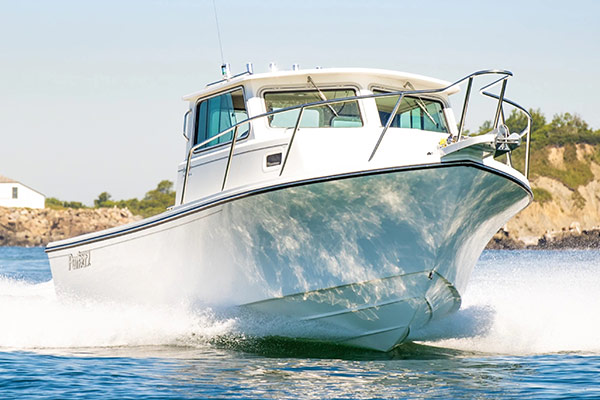

2520 XLD Sport Cabin Overview Image
Boat Overhead

POWERED BY : F300UCB, Twin F150XSA2, Twin F200XSA2

LENGTH : 25' 4"

LOA: 33' 1"


BEAM: 9' 6"



WEIGHT: 5800 lbs

MAX HP: 500

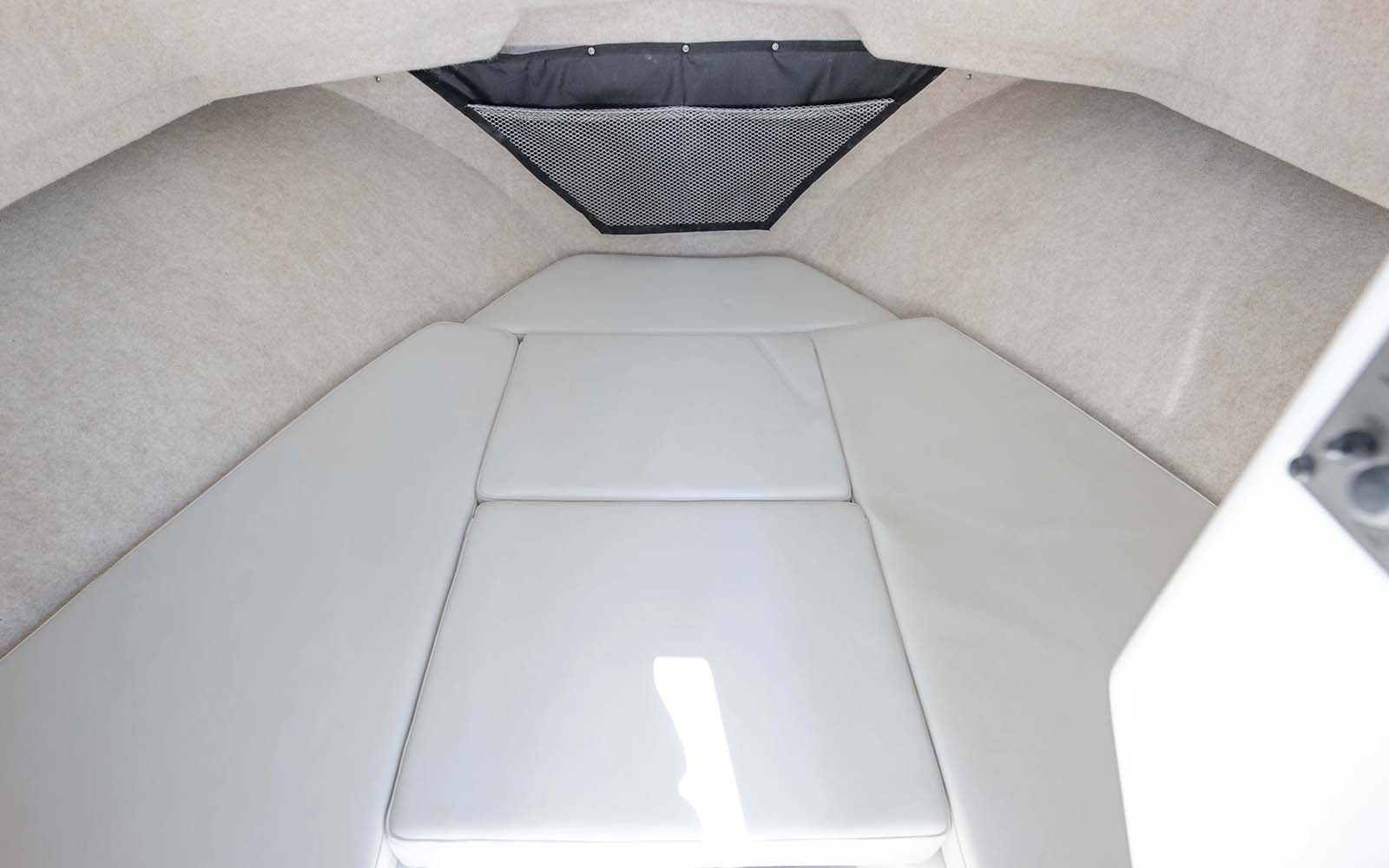

Forward Cabin (76"Length, 64"w,44" Headroom Over Bunk): Twin berths with storage and cushions, headliner, Portlights with screens; overhead ventilation hatch with screen; cabin lighting, electric flushing head, console access door, lockable entrance door with companionway hatch.

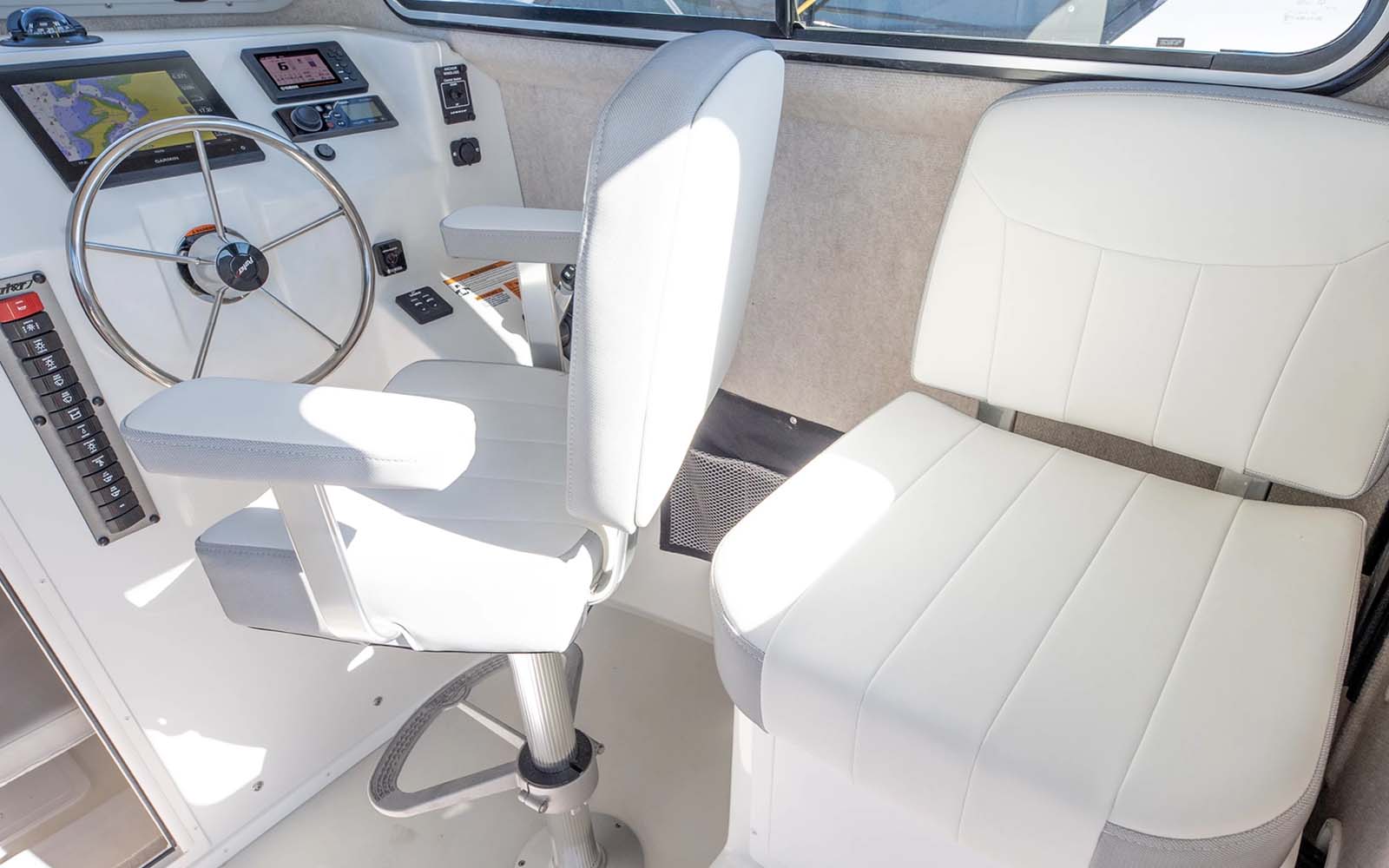

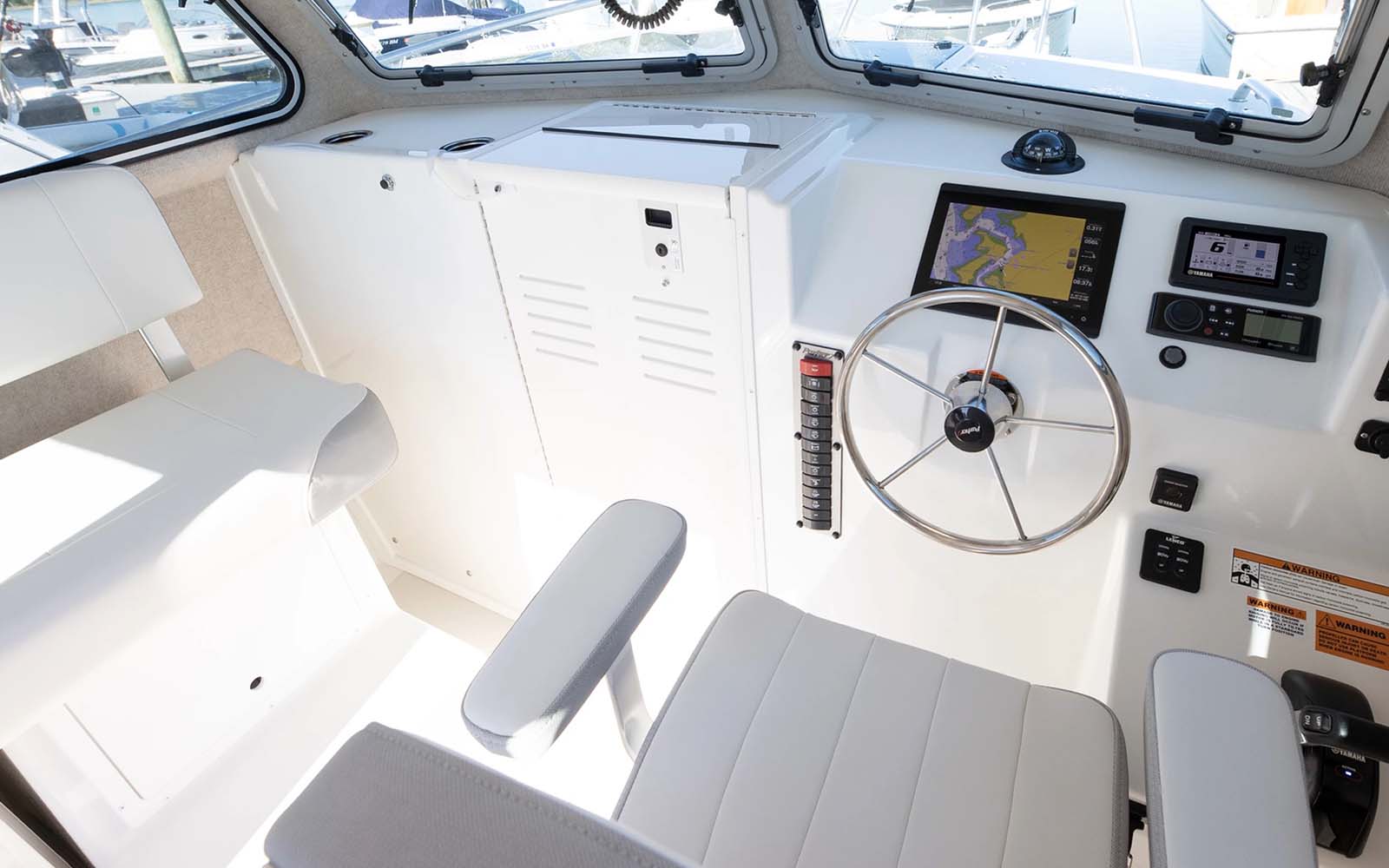

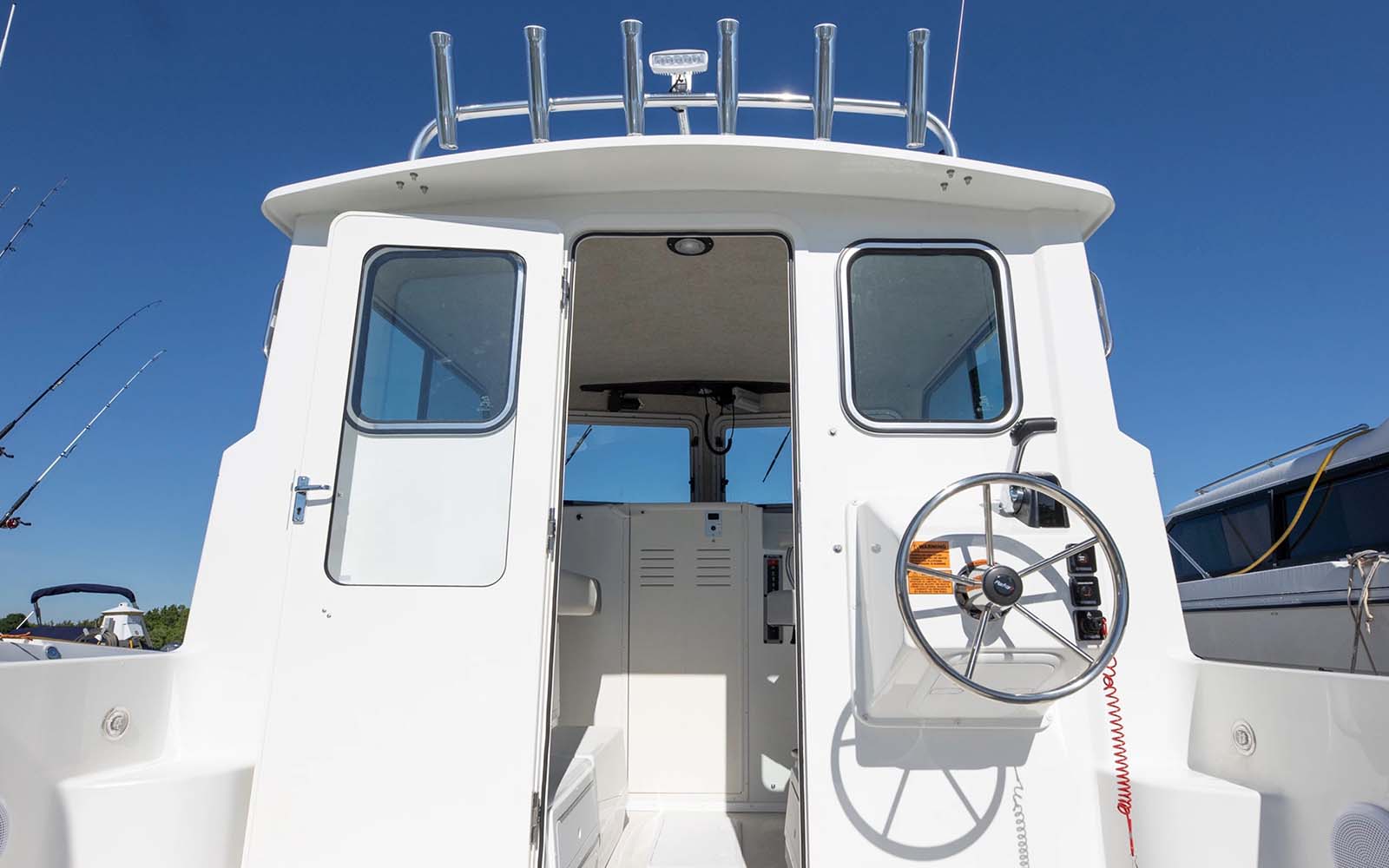

Pilothouse (59"Length, 82"Width, 76" Headroom): Tinted windshields Port and Starboard opening front windows, Port and Starboard opening windows with screens with anodized aluminum frames, headliner, overhead lighting, ladder back chairs with cushions and footrests,Port and Starboard aft companion seats with interior storage; non-skid pilothouse floor, grabrails on aft bulkhead, cup holders (2 )

Lockable Aluminum Lockable Pilothouse Door with window

Electric Flushing Head with Holding Tank and Macerator Pump


Windshield Wipers

Dual Trumpet Horn

Pulpit with Stainless Steel Anchor Roller

Anchor Locker on Foredeck

Stainless Steel Handrails on Cabin Top and Sides of Pilothouse and Top of Trunk Cabin

Stainless Steel One-Piece, Welded Bow Rail 1 1/4" Diameter

Stainless Steel Deck Hardware

Stainless Steel Rod Holders

Cup Holders

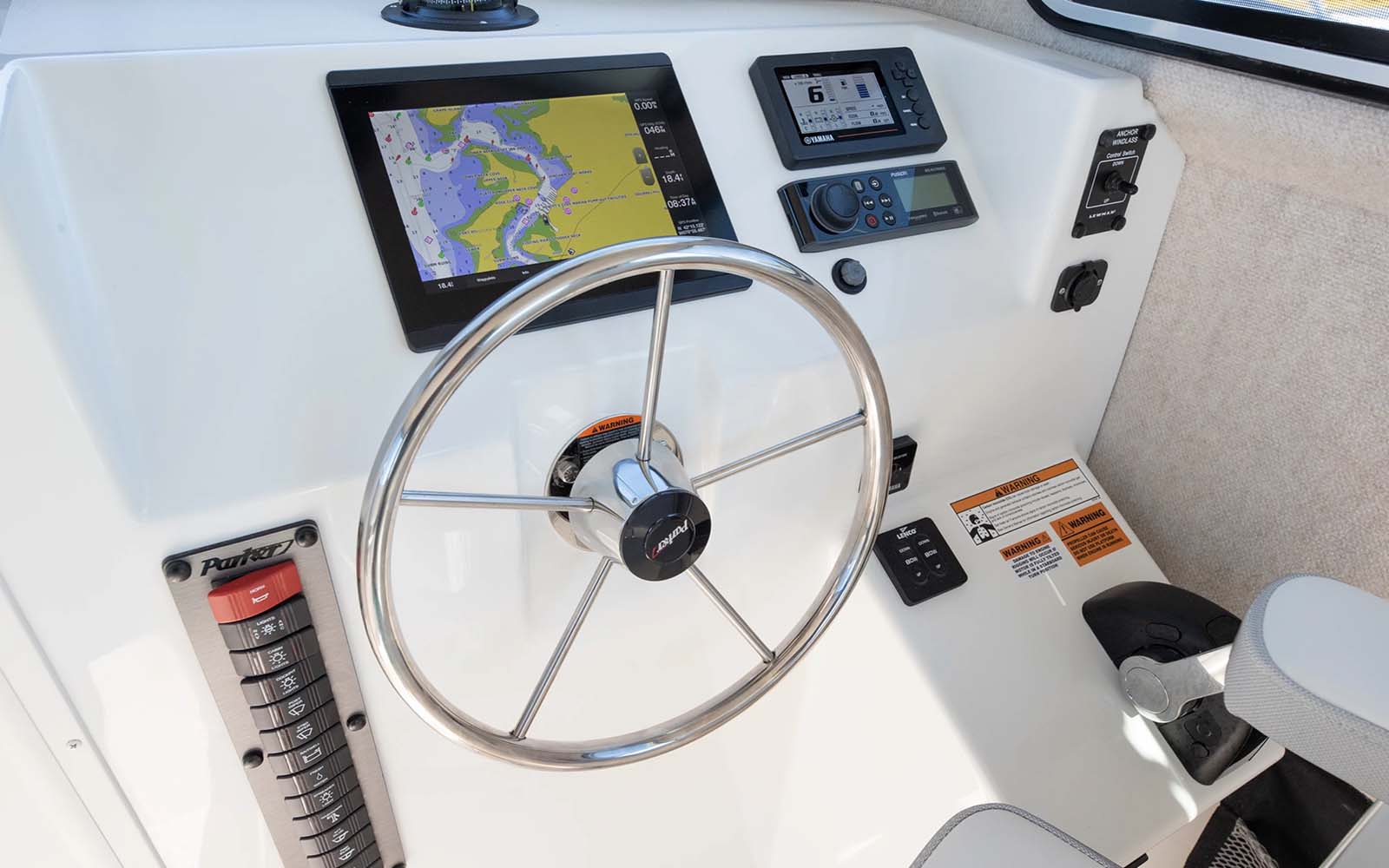

Hydraulic Steering with Stainless Steel Wheel

Trim Tabs w/Instant Retract & position Indicator

LED Navigation Lights

LED Cockpit Lighting

Accessory Panel

Bilge Pumps with Float Switches

Fresh Water Wash down

Raw Water Wash down

Fusion Stereo with Speakers

Under Gunnel Rod Storage and Toe Rail

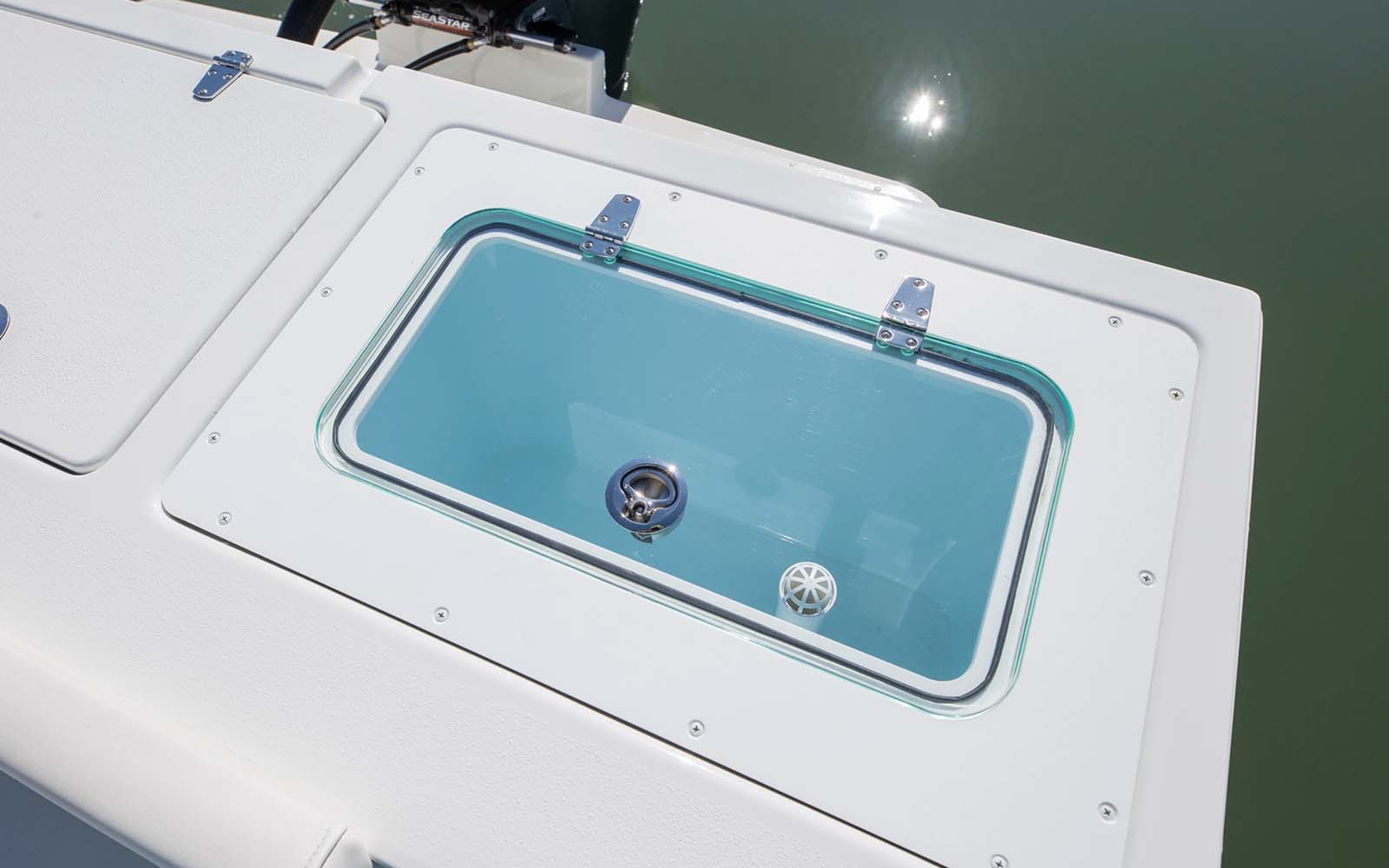

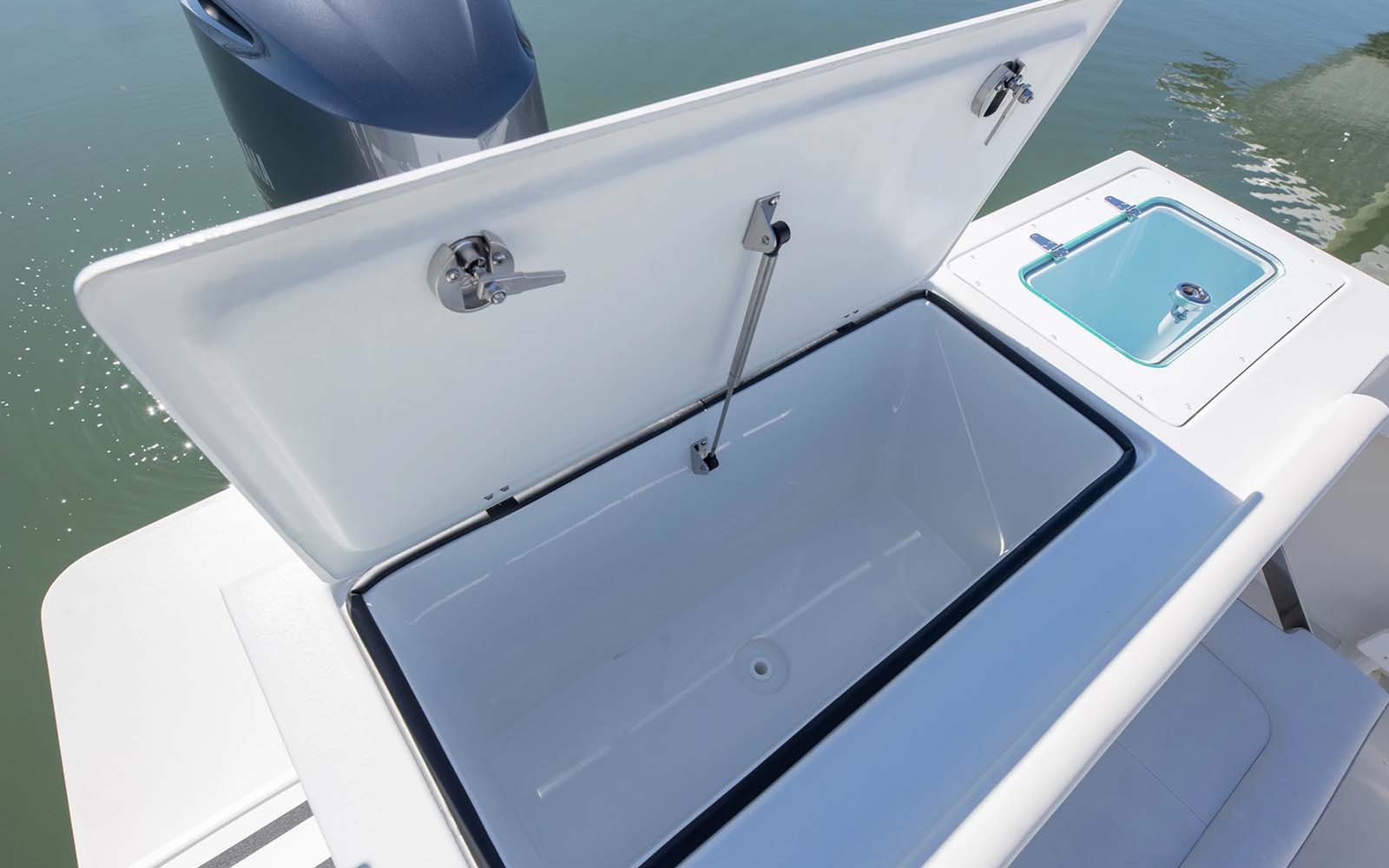

Full Transom with Transom Door, Engine Bracket, Boarding Ladder , Insulated Fish Box and Livewell

Self-Bailing Cockpit (108"l, 88"w, 24.5"d) with Contrasting Non-Skid Surface

Hull and Deck Joint Thru Bolted with Stainless SteelFastners

Heavy Duty Rub Rail with Stainless Steel Insert

USCG Flotation Foam

10 Year Limited Hull Warranty

Boat Option

Hull Color (Ice Blue, Abaco Green, Gunmetal Gray, or Horizon Blue)

Boat Option

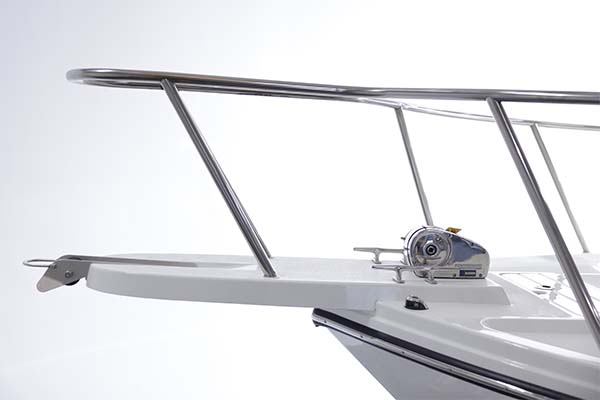

Anchor Windlass (with 300' line)

Boat Option

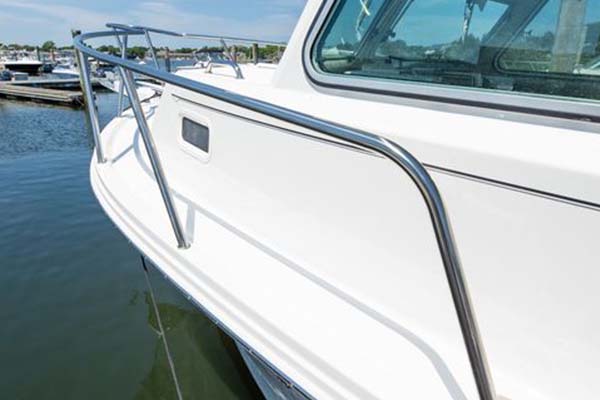

West Coast (Extra Tall) Bow Rail (Available with Pulpit Only)

Boat Option

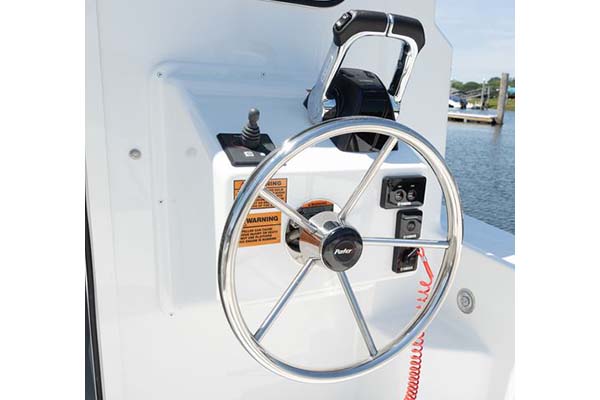

Second Station for F300UCB (Freestanding or Bulkhead)

Boat Option

Second Station for Twin F150XSA2/F200XSA2 (Freestanding or Bulkhead)

Boat Option

SeaStar Power Assist Steering

Boat Option

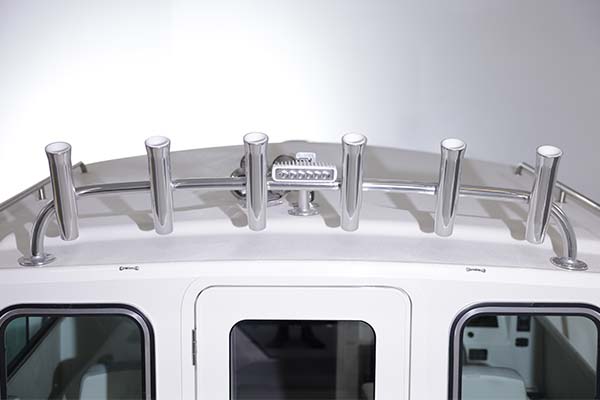

Anodized Aluminum Rocket Launcher (6 Rod)

Boat Option

4 Tray Tackle Storage Cabinet in Companion Seat

Boat Option

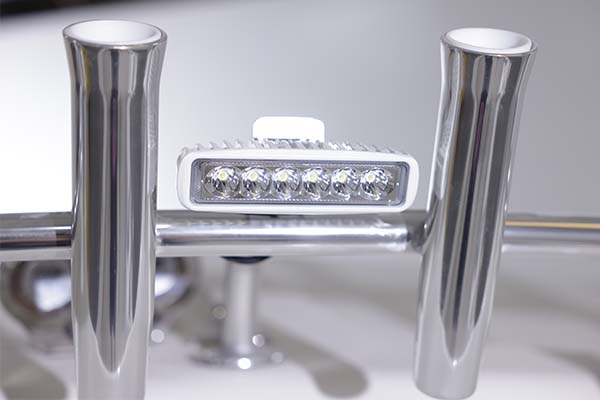

LED Spreader Light(Each)

Boat Option

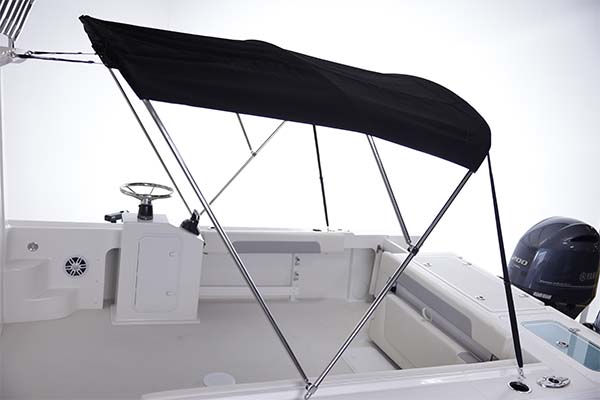

Black Canvas Cockpit Sunshade with Stainless Steel Frame

Boat Option<

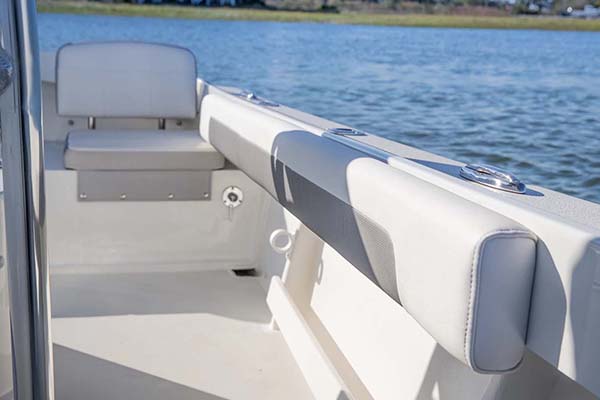

Cockpit Coaming Bolsters (Port and Starboard)

Boat Option

Deluxe Helm Chair Upgrade (Port & Starboard)

Boat Option

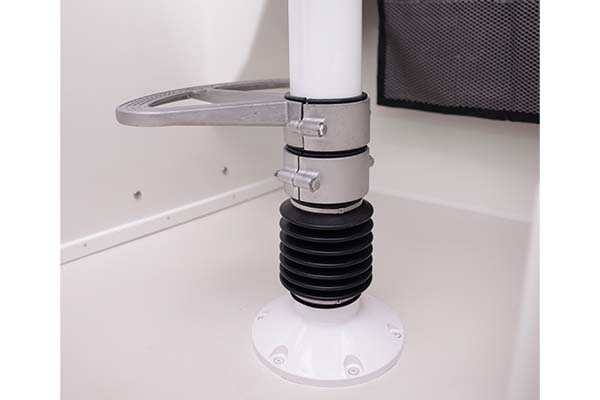

Seaspension Suspension Pedestal with Footrest (Each)

Boat Option

Pilothouse Galley Cabinet with Sink, Freshwater Tank, 12v Refrigerator, and Stove

Boat Option

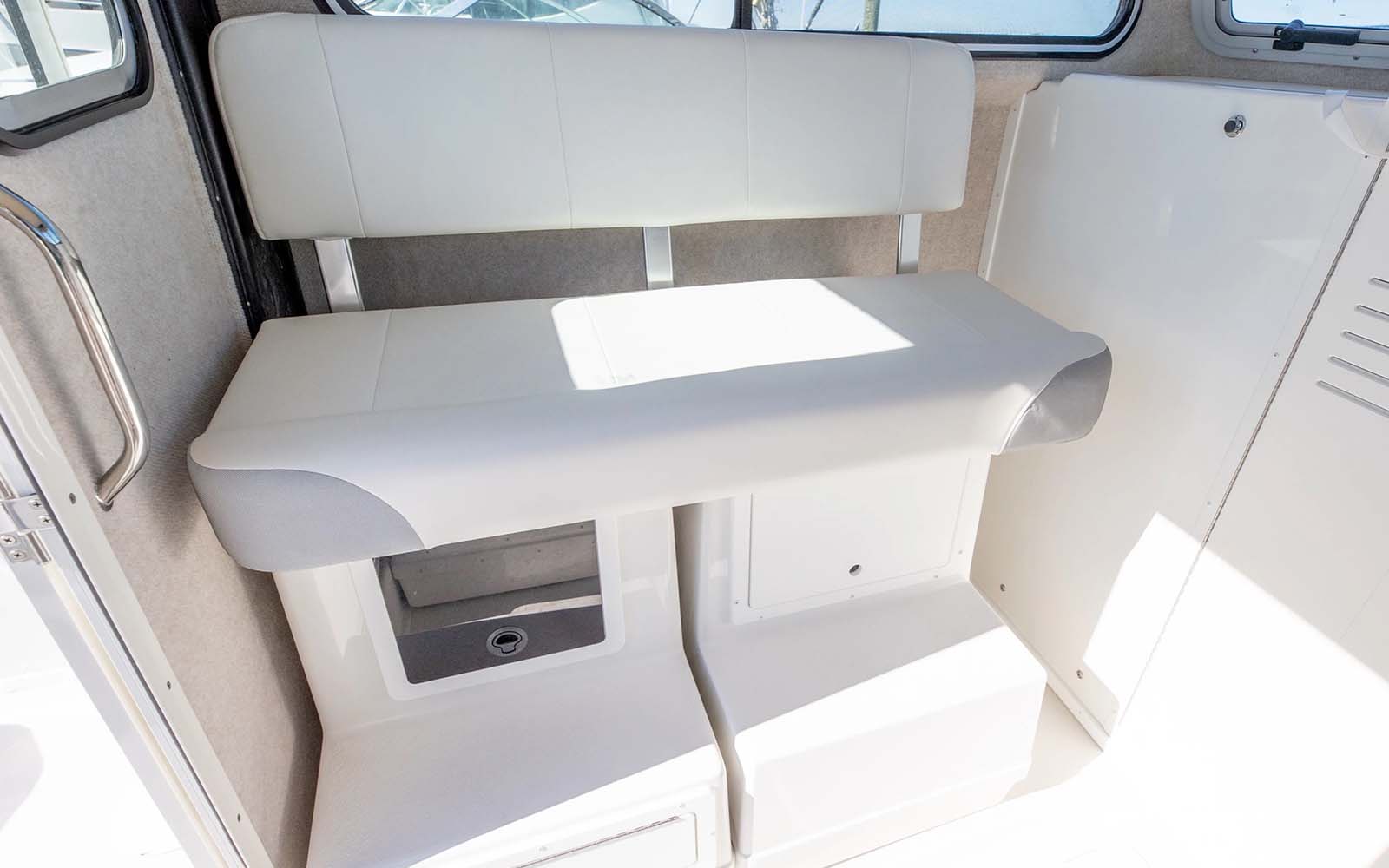

Pilothouse Port Side Full Length Lounge Seat

Boat Option

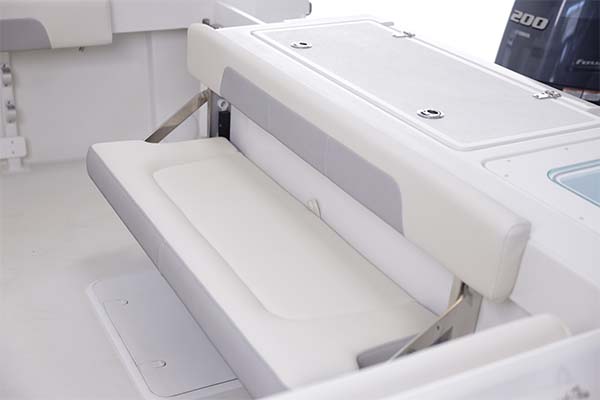

Folding Cockpit Lounge Seat

Boat Option

Blue LED Underwater Lights (2)

Boat Option

White Rub Rail with Stainless Steel Insert

Boat Option

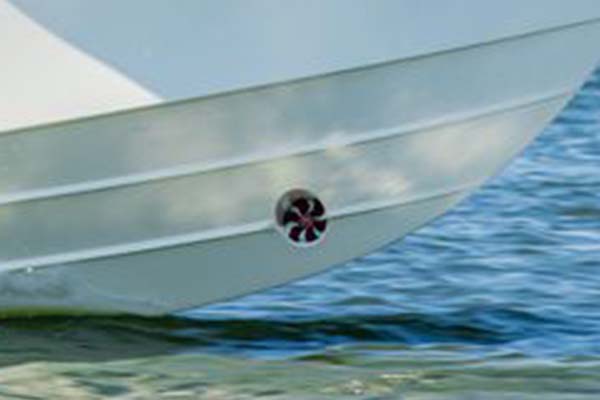

Bow Thruster

Boat Option

Bow Thruster Joystick Control for Second Station

Boat Option

Docktail Rod Holder Mount: Caddy, Butler, or Utility Table (Utility Table Shown)

Boat Option

Battery Charger (2 Bank)

Boat Option

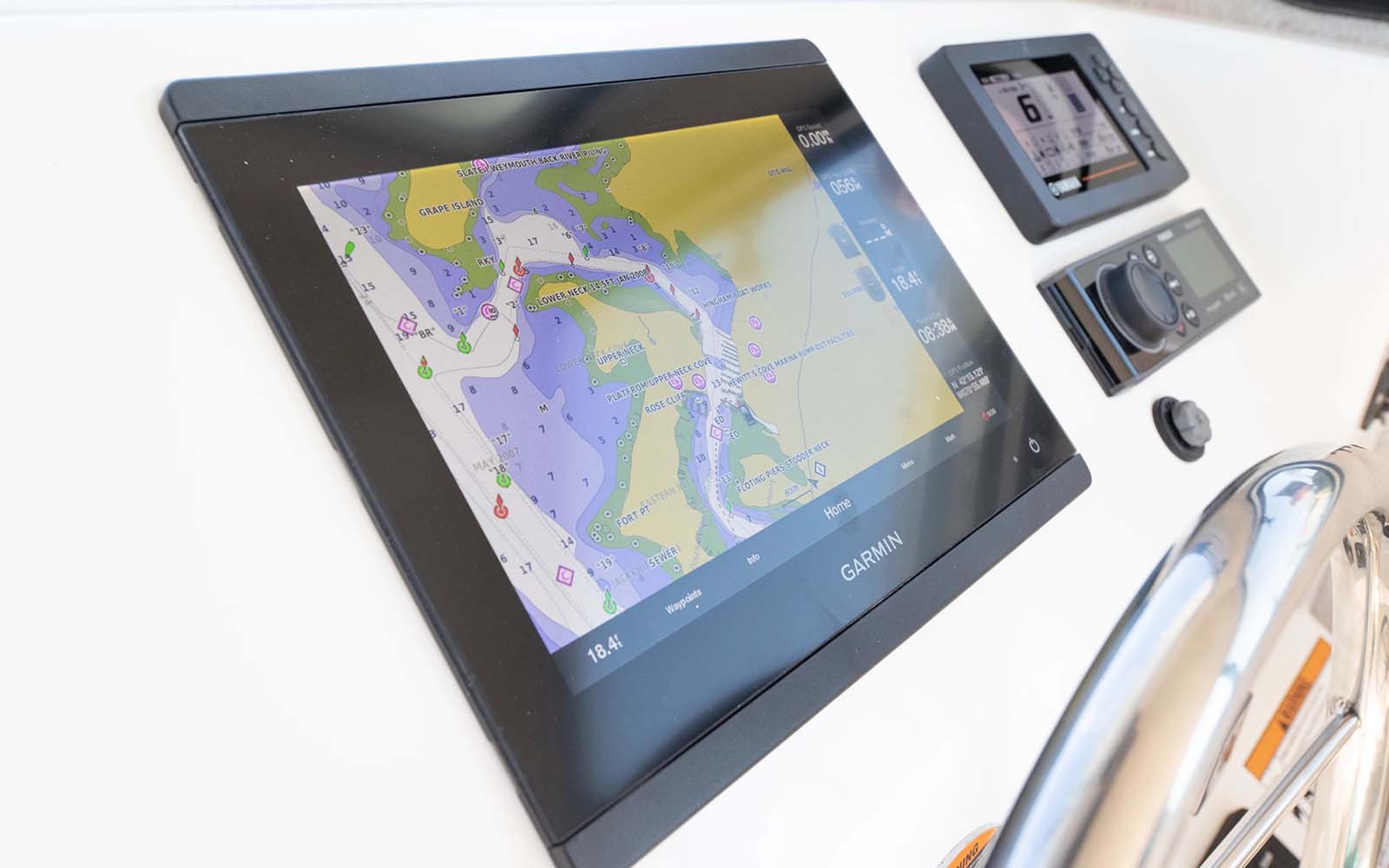

Garmin Electronics Packages: (Antenna Included, Installed by Dealer)

  • GPS MAP 943 XS (GPS/Sounder) B60 transducer with Garmin 115 VHF
  • GPS MAP 1042 XSV & B60 TH with Garmin 115 VHF
  • GPS MAP 8610 XSV & B60 TH with Garmin 115 VHF
  • GPS MAP 8612 XSV & B60 TH with Garmin 115 VHF
  • Garmin Upgraded Chirp Transducer GT12M-TH
  • Garmin 18 xHD Radar
  • Garmin 24 xHD Radar
Boat Option

Shrink Wrap

Yamaha Package Includes: Engine cut off switch, controls, wire harness, ignition switch, gauge package, water separator(s), control cables, prop(s), batteries and switch (twin engine options includes the price of twin bracket with swim platform)

Learn More

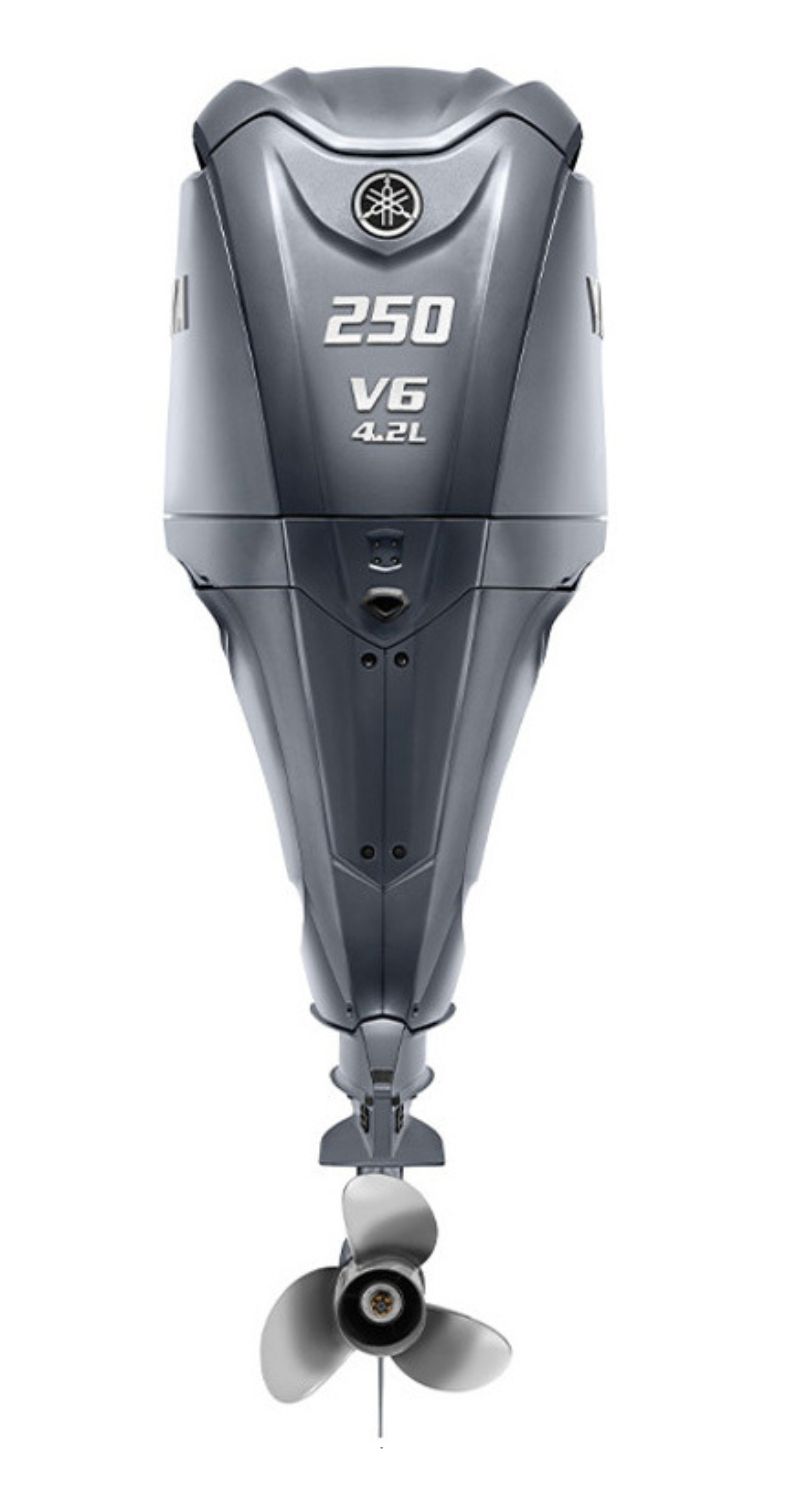

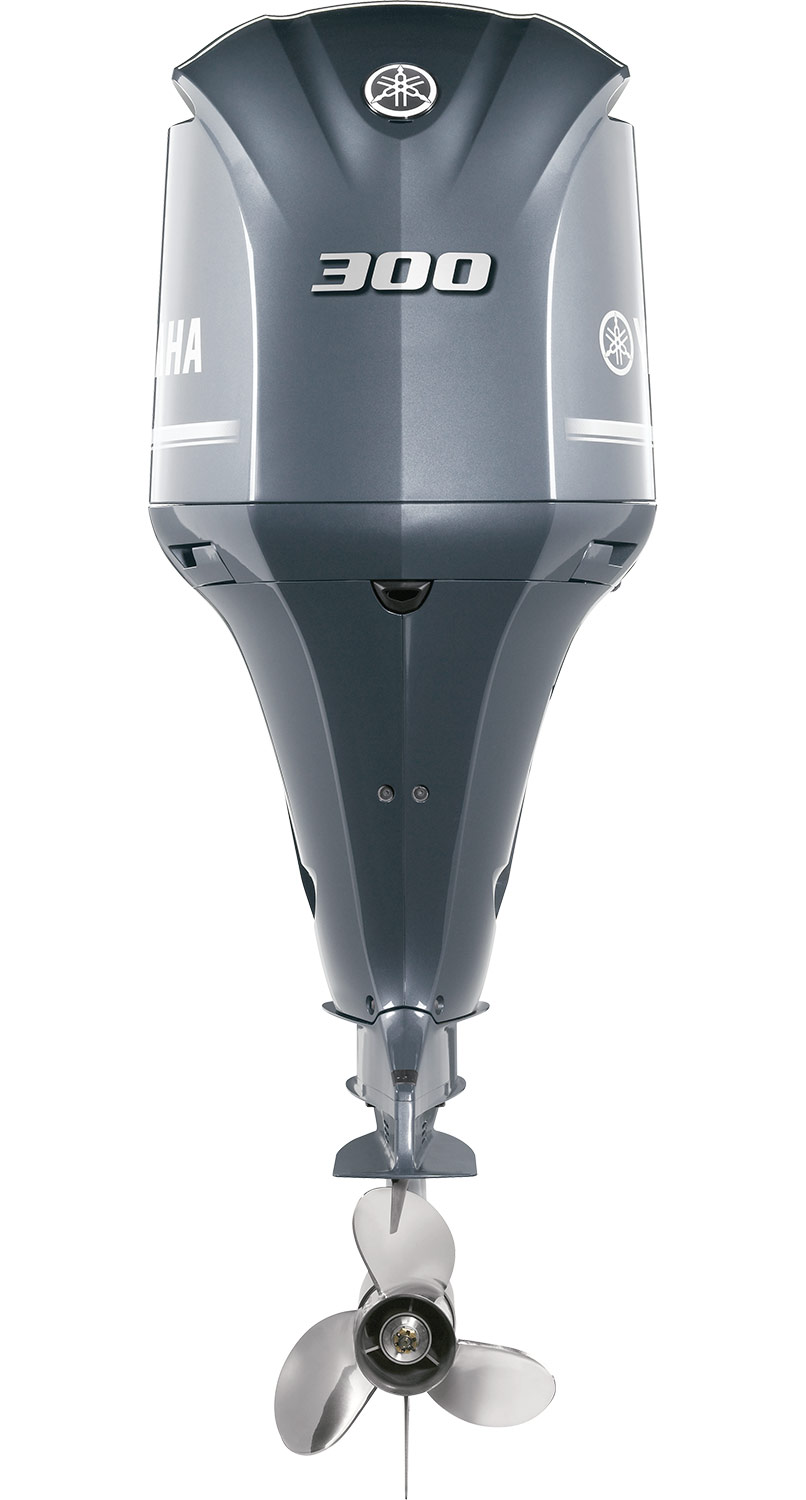

Yamaha F300UCB


Yamaha F300 XB

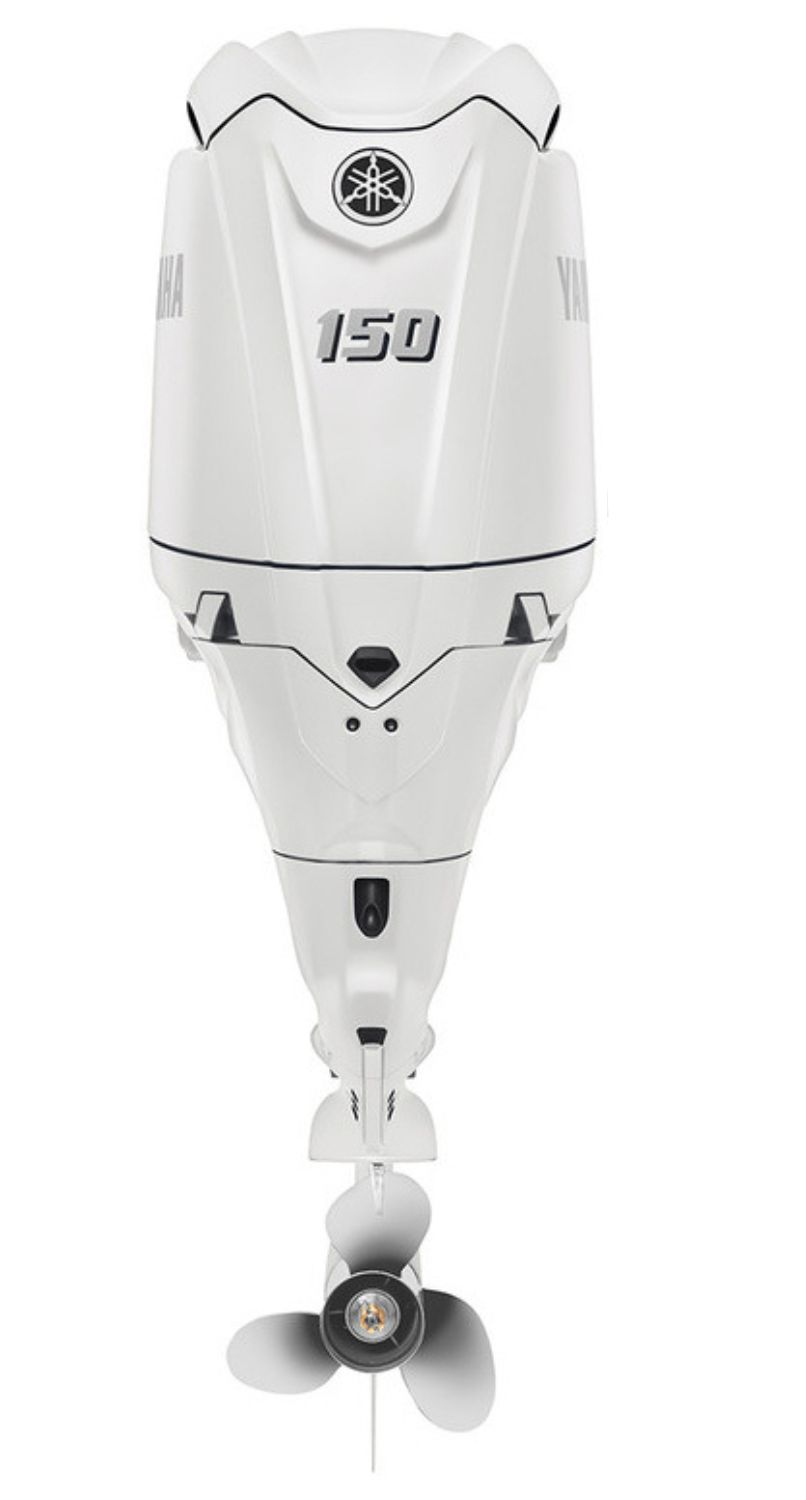

Yamaha Twin F150XSA2
